Hydrogen Generator
UHP-3000 - 7N to 9N PEM Hydrogen Generator (3000 sccm)
Model · UHP-3000
Contact for PricingUSD

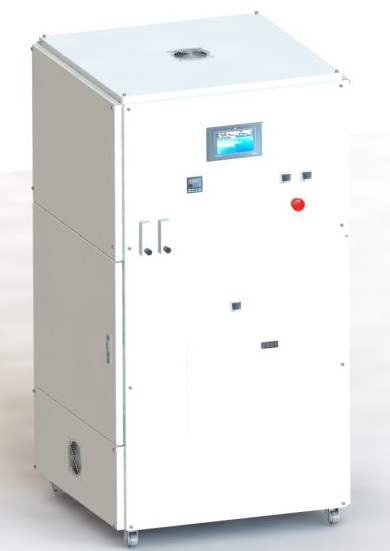

The 6C Hydrogen Generator is a floor-standing ultra-high-purity (UHP) PEM electrolyser that produces hydrogen on demand from deionised water. Combines PLC-controlled electrolysis with a proprietary high-temperature metal-alloy membrane purifier to deliver 7N to 9N purity H₂ — eliminating the need for high-pressure H₂ cylinders in laboratory, analytical, fuel-cell R&D, and MPCVD feed-gas applications. Field-proven for 2-year continuous run at >90% real run rate; 8000+ hour membrane service interval.
Key Advantages
- Ultra-high-purity H₂ — 7N to 9N (99.99999% to 99.9999999%)
- Three field-selectable flow rates — 3000 / 6000 / 9000 sccm
- PEM electrolytic cell — no acid / alkaline electrolyte
- High-temperature metal-alloy membrane purifier (8000+ hr service interval)
- Floor-standing self-contained cabinet with casters
- Eliminates high-pressure H₂ cylinder logistics and safety burden
- Direct MPCVD fleet feed-gas via 4 bar standard outlet
Technical Specifications
- Max H₂ Flow Rate
- 3000 sccm
- Maximum System Power
- 3.3 kW
- DI Water Consumption (max yield)
- 0.17 L/h
- Net Weight
- 100 kg
- H₂ Purity
- 99.99999% to 99.9999999% (7N to 9N)
- Outlet Pressure
- 4 bar standard / 6 bar (0.6 MPa) max
- Electrolytic Cell
- PEM (Proton Exchange Membrane)
- Purification Technology
- High-temperature metal-alloy membrane (>2-yr continuous run, >90% real run rate)
- Cooling
- Natural air cooling (28 Nm³/min ventilation)
- Dimensions (H × W × D)
- 1550 × 810 × 810 mm (floor-standing on casters)
- Electrical Requirements
- 208-240 VAC single-phase, 50 Hz
- H₂ Outlet Connection
- SS compression fitting or VCR
- Communication
- RS-232, RS-485, Ethernet (Modbus RTU / TCP; HMI touchscreen)
- Operating Temperature
- 5 – 50 °C
- Altitude
- < 2000 m
- IP Rating
- IP20
- Certifications
- CE, IEC-61010
- Lead Time (standard)
- 8 – 9 weeks (60 days)
- Lead Time (custom configuration)
- 12 – 14 weeks
- Power
- 3.3 kW
